What is the Seal Around the Oil Pan?

The seal surrounding the oil pan, known as the oil pan gasket, is a critical component that prevents engine oil from leaking between the oil pan and the engine block. Located at the bottom of the engine, this gasket ensures the lubrication system remains sealed, maintaining proper oil levels and protecting against contaminants. Oil pan gaskets are typically made from rubber, cork, or metal, chosen for their ability to withstand high temperatures and resist oil degradation.

Key Functions of the Oil Pan Gasket:

• Leak Prevention: Creates a tight seal to prevent oil leakage, safeguarding engine performance and preventing low oil levels.
• Vibration Dampening: Acts as a cushion to absorb engine vibrations, reducing stress on the oil pan and nearby components.

Common Engine Gaskets and Their Roles

While the oil pan gasket is vital, other engine gaskets also play essential roles in sealing components and maintaining efficiency:

1. Cylinder Head Gasket
   • Function: Seals the combustion chamber, preventing leaks of gases, oil, and coolant between the engine block and cylinder head.
   • Material: Multi-layer steel (MLS) or composites for high-pressure and high-temperature resistance.
2. Intake/Exhaust Manifold Gaskets
   • Function: Ensures airtight sealing of air-fuel mixtures (intake) and exhaust gases (exhaust), optimizing engine efficiency.
   • Material: Heat-resistant rubber, silicone, or composites.
3. Valve Cover Gasket
   • Function: Prevents oil leaks between the valve cover and cylinder head, protecting valvetrain components.
   • Material: Flexible rubber or silicone for temperature adaptability.
4. Timing Cover Gasket
   • Function: Seals the timing cover to the engine block, protecting timing components from debris and oil leaks.
   • Material: Rubber or silicone with oil and heat resistance.
5. Rear Main Seal
   • Function: Prevents oil leaks at the rear crankshaft exit point, where the engine connects to the transmission.
   • Material: Durable rubber or polyurethane.

Oil Seals for Dynamic Applications

Oil seals differ from gaskets by sealing rotating components. Key types include:

• Crankshaft Oil Seal: Seals the crankshaft’s front/rear ends to prevent oil leaks.
• Hub Oil Seal (Truck): Keeps grease in wheel hubs while blocking contaminants.
• Hydraulic Oil Seal: Maintains fluid retention in high-pressure hydraulic systems.
• Power Steering Oil Seal: Ensures fluid pressure in steering mechanisms.
• TC Oil Seal: Double-lip design for superior protection in rotating machinery.

Maintenance Tips for Gaskets and Seals

• Material Selection: Match materials to operating conditions (temperature, pressure, fluid exposure).
• Proper Installation: Follow manufacturer guidelines for torque specifications to avoid leaks.
• Regular Inspection: Check for wear, cracks, or leaks and replace components promptly.

Conclusion

The oil pan gasket is indispensable for engine health, but understanding the broader ecosystem of gaskets and seals—from cylinder head gaskets to dynamic oil seals—ensures comprehensive maintenance. Proper selection, installation, and upkeep of these components prevent leaks, enhance performance, and extend the lifespan of automotive and industrial systems.

What is the Seal Around the Oil Pan?

The seal around the oil pan, commonly known as the oil pan gasket, plays an essential role in maintaining the integrity of an engine’s lubrication system. This gasket is located at the junction between the oil pan and the engine block, preventing engine oil from leaking out. The oil pan holds the engine’s oil, ensuring that the lubrication system functions effectively. This seal is crucial for maintaining proper oil levels, preventing overheating, and protecting engine components from damage.

Function of the Oil Pan Gasket

Leak Prevention:
The primary function of the oil pan gasket is to create a tight seal between the oil pan and the engine block. This prevents oil leaks that could lead to low oil levels, which may cause engine damage over time. Proper sealing ensures that the oil remains contained within the lubrication system, essential for the smooth operation of the engine.

Vibration Dampening:
The oil pan gasket also helps absorb vibrations from the engine. By acting as a cushion, it protects the oil pan and surrounding components from damage caused by engine vibrations. This feature ensures that the gasket and other engine components remain intact, reducing the likelihood of premature wear.

Materials Used for Oil Pan Gaskets

Oil pan gaskets are made from materials that are durable and resistant to the high temperatures and oils present in the engine. Common materials include:

• Rubber: Offers excellent sealing properties and flexibility.
• Cork: Provides good compression, ensuring a tight seal.
• Metal: Used in high-performance applications for better heat resistance and durability.

The selection of material depends on the engine design, manufacturer specifications, and operating conditions.

Common Types of Engine Gaskets and Their Functions

In addition to the oil pan gasket, several other gaskets play crucial roles in sealing various components within the engine:

1. Cylinder Head Gasket:

   • Function: Seals the interface between the engine block and the cylinder head, maintaining compression within the combustion chamber. It prevents oil and coolant leaks, ensuring engine performance.
   • Materials: Often made from multi-layer steel (MLS) or composite materials to withstand high pressure and temperature.
2. Intake and Exhaust Manifold Gaskets:

   • Function: These gaskets seal the connection between the engine block and the intake/exhaust manifolds. They ensure proper sealing of air-fuel mixtures and exhaust gases, preventing leaks and maintaining engine efficiency.
   • Materials: Typically made from rubber, silicone, or composite materials that offer resistance to heat and chemical exposure.
3. Valve Cover Gasket:

   • Function: Seals the area between the valve cover and the cylinder head, preventing oil leaks and protecting the valve train components from contaminants.
   • Materials: Commonly made from rubber or silicone for flexibility and durability under varying temperatures.
4. Timing Cover Gasket:

   • Function: Seals the timing cover to the engine block, preventing oil leaks and protecting timing components from debris and moisture.
   • Materials: Often made from rubber or silicone, chosen for their resistance to oil and heat.
5. Rear Main Seal:

   • Function: Located at the rear of the engine, this seal prevents oil leaks between the crankshaft and the engine block, especially where the crankshaft exits to connect with the transmission.
   • Materials: Typically made from oil-resistant rubber or polyurethane to withstand high-pressure and high-temperature conditions.
6. Front Crankshaft Seal:

   • Function: Seals the front of the crankshaft where it exits the engine block, preventing oil leaks and protecting timing components.
   • Materials: Usually made from rubber or silicone, providing effective sealing under dynamic conditions.

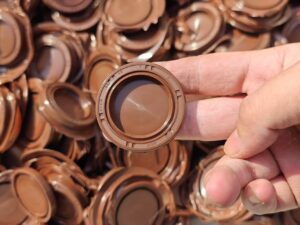

7. Oil Seals (Lip Seals):

   • Function: Used in rotating shafts, these seals prevent oil leakage and protect against contaminants entering the sealing area.
   • Materials: Commonly made from elastomers like nitrile or fluorocarbon rubber, chosen for their resilience and resistance to oil and temperature variations.

Selecting and Maintaining Engine Gaskets and Seals

Proper selection and maintenance of engine gaskets and seals are essential for preventing leaks and ensuring engine longevity:

• Material Selection: Choose gaskets and seals made from materials compatible with the engine’s operating conditions, including temperature, pressure, and exposure to various fluids.
• Installation: Ensure that gaskets and seals are installed correctly, following manufacturer guidelines, to achieve optimal sealing performance.
• Regular Inspection: Periodically inspect gaskets and seals for signs of wear, such as leaks or degradation, and replace them as necessary to maintain engine integrity.
• Torque Specifications: Adhere to recommended torque settings when installing components that utilize gaskets, as improper torque can lead to leaks or gasket failure.

Conclusion

In conclusion, the oil pan gasket is a crucial component in maintaining the engine’s lubrication system by preventing oil leaks and protecting the system from contaminants. Proper understanding of its function, along with the roles of other engine gaskets and seals, is vital for maintaining optimal engine performance and extending the lifespan of the engine. Whether in automotive engines, hydraulic systems, or industrial machinery, selecting the correct oil seal is essential to ensure the reliability and longevity of the equipment.
