What is the Difference Between TC and TG Oil Seals?

TC and TG oil seals are two widely used sealing solutions under the Japanese Industrial Standard (JIS). While both serve to retain lubricants and exclude contaminants, they differ significantly in design, performance, and application. This article systematically breaks down their distinctions to guide optimal selection.

1. Key Design Differences

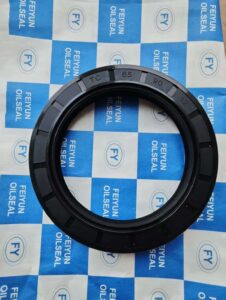

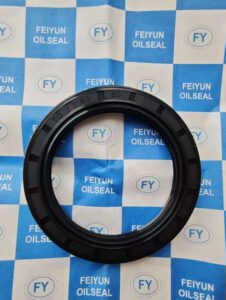

TC Oil Seals

• Lip Configuration:
  • Twin-Lip Design:
    • Primary Lip: Prevents internal lubricant leakage (oil/grease).
    • Secondary Lip: Acts as a dust/exclusion barrier to block external contaminants.
    • A garter spring ensures consistent sealing pressure against the shaft.
  • Outer Case:
    • Smooth rubber-coated metal casing with no external threads.
    • Requires precise press-fitting into a machined housing bore.
  • Materials:
    • Standard: NBR (Nitrile Rubber) for moderate temperatures (-40°C to +120°C).
    • High-Temperature Option: FKM (Fluoroelastomer/Viton) for applications up to +200°C.
    •

TG Oil Seals

• Lip Configuration:
  • Single-Lip or Multi-Lip Variants:
    • Traditional TG: Single lip for basic sealing (combines fluid retention and dust exclusion).
    • Advanced Models (e.g., TG4): Multi-lip designs or added springs for enhanced performance.
  • Outer Case:
    • Metal casing with external helical threads for easy installation into threaded housings.
    • Reduces dependency on precise bore machining.
  • Materials:
    • Standard: NBR for general use.
    • Specialized Models: FKM or silicone for extreme temperatures or chemical resistance.
    •

2. Performance Comparison

3. Installation and Maintenance

TC Oil Seals

• Installation:
  • Requires precise shaft-bore alignment and specialized press-fitting tools.
  • Intolerant to shaft misalignment or rough housing surfaces.
• Maintenance:
  • Higher replacement frequency due to dual-lip wear.

TG Oil Seals

• Installation:
  • Threaded outer case allows quick screw-in installation, even in rough or oversized bores.
  • Tolerates minor shaft eccentricity and vibration.
• Maintenance:
  • Longer lifespan in high-vibration environments due to secure mechanical fixation.

4. Application Scenarios

TC Oil Seals

• High-Speed/High-Pressure Systems:
  • Automotive engines, transmissions, and hydraulic pumps.
  • Industrial machinery requiring precise sealing (e.g., CNC equipment).
• Moderate Contamination Environments:
  • Enclosed systems where dust/water exposure is controlled.

TG Oil Seals

• Low-Speed/Heavy-Duty Systems:
  • Agricultural gearboxes, mining equipment, and construction machinery.
• High-Vibration Environments:
  • Truck drivetrains, off-road vehicles, and reciprocating pumps.
• Cost-Sensitive or Space-Constrained Applications:
  • Household appliances, conveyor systems, and small motors.

5. Cost and Selection Guidelines

• Cost Comparison:
  • TC seals are 20–30% more expensive due to complex twin-lip designs and rubber-coated cases.
  • Basic TG seals (single-lip) are economical for budget-driven projects.
• Selection Criteria:
  • Choose TC When:
    • Dual contamination protection is critical (e.g., automotive engines).
    • Operating conditions involve high RPM, pressure, or controlled contamination.
  • Choose TG When:
    • Installation simplicity and vibration resistance are priorities (e.g., farm machinery).
    • Budget constraints exist, or the environment is relatively clean.

6. Special Variants and Confusions

• TG4 Oil Seals:
  • A hybrid design combining multi-lip configurations and springs, rivaling TC’s performance at a higher cost.
• Design Inconsistencies:
  • Some sources label TG as single-lip, while others reference threaded or multi-lip variants—always verify specifications.

Summary

The primary differences between TC and TG oil seals lie in their lip design, outer casing, and use cases:

• TC: Twin lips + smooth rubber-coated case = premium sealing for demanding environments.
• TG: Single/threaded design + bare/threaded metal case = cost-effective solution for rugged, low-speed systems.

Selecting between them hinges on factors like operational pressure, contamination levels, installation requirements, and budget. For specialized needs, hybrid models like TG4 bridge the gap between these two categories.
