What Are Automotive Seals?

Automotive seals are specialized components critical to vehicle functionality. They prevent the leakage of fluids (oil, coolant, fuel) and gases while protecting mechanical systems from contaminants like dirt, moisture, and debris. By maintaining pressure and reducing friction, these seals ensure the efficient operation of engines, transmissions, braking systems, and other vital components. Below is a detailed exploration of their types, materials, functions, and applications.

Definition and Core Functions

Automotive seals serve three primary roles:

1. Fluid Retention:
   Seals contain lubricants such as engine oil, transmission fluid, and coolant within their respective systems. This prevents leaks that could lead to mechanical failures, excessive wear, or overheating.
2. Contaminant Exclusion:
   They block external particles like dust, water, and road grime from entering sensitive areas such as engines, gearboxes, and braking systems. This protection ensures the longevity and reliability of critical components.
3. Pressure Maintenance:
   In hydraulic, fuel, and combustion systems, seals maintain the pressure required for optimal performance. For example, brake seals preserve hydraulic pressure to ensure responsive braking.

Additional functions include noise reduction (via cabin weatherstripping) and friction minimization in moving parts like bearings.

Types of Automotive Seals

Seals vary widely in design to address specific operational demands:

1. Mechanical Seals

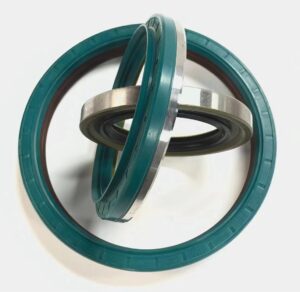

• Lip Seals (Rotary Shaft Seals):
  Used around rotating shafts (e.g., crankshafts, camshafts), these feature a flexible rubber lip and a garter spring to retain lubricants and exclude contaminants.
• Gaskets:
  Flat seals placed between static components, such as engine cylinder heads, to prevent fluid leaks and cross-contamination.
• O-Rings:
  Circular elastomeric rings used in dynamic or static applications (e.g., fuel injectors, hydraulic systems) to seal interfaces through compression.

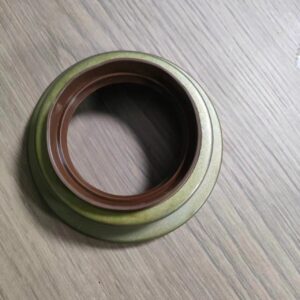

• Shaft Seals:
  Protect axles and transmissions by retaining gear oil and shielding bearings from environmental damage.

2. Weather Seals

• Door/Window Seals:
  Made from EPDM rubber, these block noise, water, and air to enhance cabin comfort.
• Sunroof Seals:
  Prevent leaks in sunroof or panoramic roof assemblies.

3. Specialized Seals

• Brake System Seals:
  Maintain hydraulic pressure in calipers and master cylinders.
• EV-Specific Seals:
  Designed for battery thermal management and electric motor protection.

Materials and Durability

Seal performance hinges on material selection, which must balance temperature tolerance, chemical resistance, and wear:

• Elastomers:
  • Nitrile (NBR): Oil-resistant, ideal for fuel systems.
  • Silicone: Withstands extreme temperatures in electric vehicles.
  • Viton® (FKM): Resists high heat and aggressive chemicals.
• Metals:
  Stainless steel or aluminum inserts provide structural rigidity in high-pressure environments (e.g., exhaust systems).
• Composites:
  PTFE or cork offers low friction and compressibility for gaskets.

Applications Across Vehicle Systems

Seals are integral to nearly every automotive subsystem:

• Engine/Transmission:
  Crankshaft seals, valve stem seals, and transmission fluid seals ensure lubrication and prevent leaks.
• Drivetrain:
  Differential and axle seals protect gear oil integrity.
• Braking Systems:
  Master cylinder seals maintain hydraulic pressure for safe braking.
• HVAC/Electronics:
  Refrigerant seals and moisture barriers safeguard sensors and ECUs.
• Exterior:
  Weatherstripping improves aerodynamics and cabin insulation.

Challenges and Maintenance

Despite their durability, seals face degradation from:

• Heat and Friction: Causes wear or deformation over time.
• Chemical Exposure: Harsh fluids degrade incompatible materials.
• Installation Errors: Misalignment during assembly leads to premature failure.

Regular inspections during servicing help detect leaks early. Timely replacement of worn seals prevents costly repairs and ensures safety.

Innovations in Seal Technology

Advancements focus on meeting evolving automotive needs:

• High-Temperature Materials: Silicone for EVs and hybrid systems.
• Lightweight Designs: Composite materials reduce vehicle weight.
• Smart Seals: Sensors embedded to monitor wear and leakage.

Conclusion

Automotive seals are indispensable for vehicle reliability, safety, and efficiency. Their design and material science adapt to diverse challenges—from engine heat to cabin noise. Understanding their roles underscores the importance of proper maintenance and technological advancements in sustaining automotive performance. By retaining fluids, excluding contaminants, and maintaining pressure, these components remain vital to the longevity of modern vehicles.
