What is an Oil Seal in a Car?

A Complete Guide to Functions, Types, and Maintenance

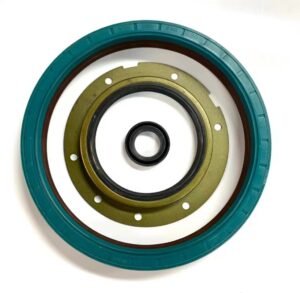

An oil seal (also called a rotary shaft seal or shaft seal) is a small yet indispensable component in automotive systems. Designed to retain lubricants and block contaminants, oil seals ensure the smooth operation and longevity of critical rotating parts. This guide explores their role, construction, applications, and importance in cars.

1. Core Functions of an Oil Seal

Oil seals perform three essential roles in automotive systems:

1. Retain Lubricants:
   • Prevent oil, grease, or transmission fluid from leaking out of engines, transmissions, or wheel hubs.
   • Ensure moving parts remain properly lubricated to minimize friction and wear.
2. Block Contaminants:
   • Act as a barrier against dust, dirt, water, and debris that could damage internal components.
3. Maintain System Integrity:
   • Preserve pressure in systems like engines and transmissions to optimize performance.

2. Key Locations of Oil Seals in a Car

Oil seals are strategically placed in nearly every rotating assembly. Common examples include:

Engine

• Crankshaft Seals:
  • Front and rear seals prevent oil leaks at the crankshaft ends.
• Camshaft Seals:
  • Seal the camshaft to keep oil inside the cylinder head.
• Valve Stem Seals:
  • Control oil flow around valves to prevent excess oil from entering combustion chambers.

Transmission

• Input/Output Shaft Seals:
  • Protect gears and bearings from fluid loss, ensuring smooth gear shifts.

Drivetrain

• Axle Seals:
  • Found in differentials and wheel hubs to retain gear oil and prevent contamination.

Wheel Hubs

• Hub Seals:
  • Secure grease within wheel bearings while keeping out dirt and moisture.

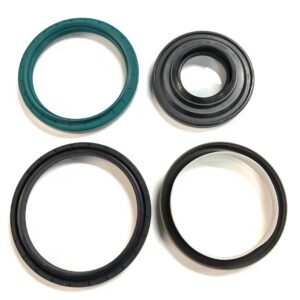

3. Types of Oil Seals in Automotive Use

Oil seals vary in design and material based on their application:

By Design

• Single-Lip Seals:
  • Basic design with one sealing lip, ideal for low-pressure, clean environments (e.g., SC oil seals).
• Dual-Lip Seals:
  • Feature a primary sealing lip and a secondary dust lip for enhanced protection (e.g., TC oil seals).

By Material

• Nitrile (NBR):
  • Affordable and oil-resistant, used in general-purpose seals.
• Fluorocarbon (FKM/Viton):
  • High-temperature resistance makes it ideal for engine components.
• Silicone:
  • Flexible and heat-resistant, often used in coolant systems.

4. How Oil Seals Work: Structure and Mechanism

A typical oil seal comprises three key components:

1. Metal Case:
   • Provides structural rigidity and ensures proper fit within the housing.
2. Rubber Sealing Lip:
   • Makes dynamic contact with the rotating shaft to prevent leaks.
3. Garter Spring:
   • A coiled spring that maintains consistent pressure between the lip and shaft.

Dynamic Sealing Process:
As the shaft rotates, the rubber lip flexes slightly, creating a tight seal without generating excessive friction. This balance ensures longevity and efficiency.

5. Signs of a Failing Oil Seal

Watch for these symptoms to detect seal deterioration early:

• Visible Oil Leaks:
  • Puddles under the car or oily residue on engine/transmission parts.
• Contaminated Fluids:
  • Gritty or discolored oil/grease due to dirt ingress.
• Unusual Noises:
  • Grinding or whining sounds from wheel bearings or transmissions.
• Overheating Components:
  • Loss of lubrication can cause excessive heat and accelerated wear.

6. Why Oil Seals Are Critical for Your Car

Oil seals directly impact vehicle performance and longevity:

• Prevent Costly Repairs:
  • A failed seal can lead to bearing failure, engine damage, or transmission breakdowns.
• Enhance Fuel Efficiency:
  • Proper lubrication reduces friction, improving fuel economy.
• Extend Component Lifespan:
  • Protection from contaminants and dry operation prolongs part durability.

7. Maintenance Tips for Oil Seals

Follow these practices to ensure optimal seal performance:

1. Regular Inspections:
   • Check for leaks during routine oil changes or servicing.
2. Timely Replacement:
   • Replace worn seals during major repairs (e.g., timing belt replacement).
3. Use High-Quality Seals:
   • Opt for OEM or premium aftermarket seals for better durability.

8. Construction and Material Considerations

• Elastomeric Materials:
  • Nitrile (NBR), hydrogenated nitrile (HNBR), and fluorocarbon (FKM) offer oil, heat, and wear resistance.
• Advanced Designs:
  • Dual-lip seals (e.g., TC type) provide extra protection in harsh environments.

Summary: The Unsung Hero of Automotive Systems

An oil seal in a car is a vital component that ensures lubricants stay contained and contaminants stay out. From the engine crankshaft to wheel hubs, these seals safeguard critical systems against leaks, wear, and inefficiency. Understanding their role empowers car owners to prioritize timely maintenance, avoid costly repairs, and extend the life of their vehicles.

By recognizing the importance of oil seals, drivers can appreciate how these small components contribute to the reliability and performance of their cars.
