What is the Difference Between SC and TC Oil Seals?

A Comprehensive Comparison of Design, Performance, and Applications

Oil seals, also known as rotary shaft seals, are critical components in machinery for retaining lubricants and excluding contaminants. Among these, TC (Taconite) and SC (Steel Case) oil seals are widely used but differ significantly in design, material, and suitability for specific applications. Below is a detailed analysis of their distinctions:

1. Structural Design Differences

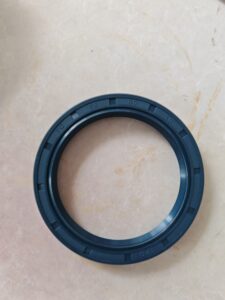

TC Oil Seals (Dual-Lip Design)

• Dual-Lip Configuration:
  • Primary Sealing Lip: Prevents internal lubricant leakage.
  • Secondary Dust Lip: Located externally, blocks dust, dirt, and contaminants from entering the seal.
• Construction:
  • Combines a rubber-coated metal case (typically steel) for corrosion resistance.
  • The rubber encapsulation compensates for minor housing imperfections, ensuring robust sealing.
• Key Advantage: Enhanced protection in harsh environments due to the dual-layer defense system.

SC Oil Seals (Single-Lip Design)

• Simplified Structure:
  • Features only a single sealing lip without an external dust barrier.
• Construction:
  • Utilizes a bare steel outer case without rubber coating.
  • Relies on precise machining of the housing bore for effective metal-to-metal sealing.
• Key Limitation: Vulnerable to contamination due to the absence of a secondary protective lip.

2. Sealing Performance and Durability

TC Oil Seals

• Sealing Mechanism:
  • The dual-lip design ensures bidirectional protection:
    • Primary lip retains oil.
    • Secondary lip blocks external contaminants.
• Durability:
  • Made from high-performance materials like NBR, HNBR, or FKM rubber, resistant to heat, chemicals, and wear.
  • Ideal for high-pressure, high-temperature, or vibration-prone environments.
• Applications:
  • Automotive transmissions, hydraulic systems, construction machinery, and agricultural equipment.

SC Oil Seals

• Sealing Mechanism:
  • Relies on single-lip contact with the shaft surface to prevent leakage.
• Material Limitations:
  • Typically uses standard rubber compounds, offering basic resistance but degrading faster in harsh conditions.
• Applications:
  • Best suited for low-pressure, clean environments such as electric motors, pumps, and cost-sensitive machinery.

3. Corrosion and Contamination Resistance

TC Oil Seals

• Corrosion Resistance:
  • Rubber-coated metal casing provides excellent protection against moisture, chemicals, and oxidation.
• Contamination Resistance:
  • Dust lip prevents abrasive particles from entering, reducing wear on internal components.

SC Oil Seals

• Corrosion Vulnerability:
  • Bare steel case is prone to rust in humid or corrosive environments.
• Contamination Risks:
  • Lack of a dust lip makes them unsuitable for dusty or dirty settings.

4. Application Scenarios

Where to Use TC Oil Seals

• Heavy-Duty Environments:
  • Automotive wheel hubs, engines, and hydraulic systems.
  • Industrial equipment exposed to high loads, vibrations, or extreme temperatures.
• Contaminated Settings:
  • Construction sites, agricultural machinery, and mining operations.

Where to Use SC Oil Seals

• Light-Duty Applications:
  • Small motors, household appliances, and low-speed machinery.
• Cost-Driven Projects:
  • Budget-friendly solutions for non-critical systems with minimal contamination risks.

5. Material and Cost Considerations

6. Summary of Key Differences

Conclusion: Choosing the Right Seal

The choice between TC and SC oil seals hinges on operational demands and environmental factors:

• Opt for TC Seals if your equipment operates under:
  • High contamination, heavy loads, or extreme temperatures.
  • Conditions requiring long-term reliability and minimal maintenance.
• Choose SC Seals for:
  • Clean, low-pressure systems with budget constraints.
  • Applications where basic sealing suffices and dust ingress is negligible.

By aligning seal selection with these criteria, engineers can optimize equipment performance, reduce downtime, and lower lifecycle costs.
