How Many Oil Seals Are in an Engine?
The number of oil seals in an engine depends on its design, configuration, and technological complexity. While there’s no universal count, this guide breaks down common seal locations, influencing factors, and estimated ranges for various engine types.
Primary Oil Seal Locations
Oil seals are critical for preventing leaks and maintaining lubrication. Below are key areas where they are typically found:
1. Crankshaft Seals
- Front Crankshaft Seal: Located at the timing cover, this seal prevents oil from leaking around the crankshaft’s front end.

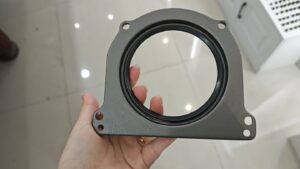

- Rear Main Seal: Positioned where the crankshaft connects to the transmission, it blocks oil from escaping into the bell housing.
- Total: At least 2 seals (front and rear) in most engines.
2. Camshaft Seals
- Overhead Cam (OHC) Engines:
- Single Overhead Cam (SOHC): 1–2 seals (one per camshaft).
- Dual Overhead Cam (DOHC): 2–4 seals (e.g., a V6 or V8 engine may have 4–8 seals, with 2 per cylinder bank).
- Pushrod Engines: Older designs may lack camshaft seals, as the camshaft is located inside the engine block.
3. Timing Cover Seals
- Seals where the timing belt/chain cover meets rotating components. These prevent oil from leaking into the timing system.
4. Oil Pump Seal
- Seals the oil pump drive shaft or housing to maintain pressure and prevent leaks.
5. Balance Shaft Seals
- Found in engines with balance shafts (common in 4-cylinders). These reduce vibration and typically require 1–2 additional seals.
6. Turbocharger Seals
- Oil Supply/Return Lines: Turbocharged engines include seals for oil lines feeding the turbo. A single turbo may add 2–3 seals; twin-turbo setups double this.
7. Valve Stem Seals
- Though not traditional “oil seals,” these prevent oil from entering combustion chambers. A 4-cylinder engine has 16 valve stem seals (4 valves per cylinder).
8. Auxiliary Component Seals
- Power Steering Pump: If integrated into the engine, 1–2 seals are used.
- Oil Cooler Lines: High-performance engines often include seals for oil cooling systems.
- High-Pressure Fuel Pump: Diesel engines may require seals for fuel pump lubrication.
Factors Influencing Oil Seal Quantity
1. Engine Layout
- Inline Engines: Simpler designs (e.g., inline-4) generally use fewer seals.
- V-Shaped/Boxer Engines: V6, V8, or flat engines have more complex layouts, increasing seal counts.
2. Overhead Camshaft Design
- DOHC engines double the camshaft seals compared to SOHC. For example:
- A DOHC V6 engine: 4 camshafts × 2 seals each = 8 seals.
3. Technological Features
- Variable Valve Timing (VVT): Adds seals for hydraulic actuators or phasers.
- Hybrid Systems: May include seals for electric motor cooling or lubrication.
4. Engine Age
- Older engines lack seals for modern components like balance shafts or turbochargers.
Estimated Oil Seal Count by Engine Type
1. Basic 4-Cylinder Engine
- Example: Inline-4 with SOHC.
- Seals:
- Crankshaft (2) + Camshaft (1–2) + Oil Pump (1) + Balance Shaft (1–2) + Auxiliary (1–2).
- Total: 6–10 seals.
2. V6/V8 Engines
- Example: DOHC V6 with twin turbos.
- Seals:
- Crankshaft (2) + Camshaft (4–8) + Turbo (4–6) + Oil Pump (1) + Balance Shaft (2–4) + Auxiliary (3–5).
- Total: 16–25+ seals.
3. High-Performance/Diesel Engines
- Example: Turbocharged diesel V8 with VVT.
- Seals:
- Crankshaft (2) + Camshaft (8) + Turbo (6–8) + Fuel Pump (2–3) + Auxiliary (5–7).
- Total: 23–28+ seals.
Why Oil Seal Quantity Matters
Oil seals are vital for:
- Leak Prevention: A single failed seal can lead to oil loss, reduced lubrication, and engine damage.
- Pressure Maintenance: Seals ensure oil stays within critical systems (e.g., turbochargers).
- Contamination Control: They block dirt, debris, and moisture from entering the engine.
Key Takeaways
- Typical Range: Most engines have 5–25+ oil seals, depending on complexity.
- Design-Driven Variations: Turbochargers, DOHC layouts, and auxiliary systems significantly increase seal counts.
- Consult Manufacturer Data: Always refer to the service manual for your engine’s exact specifications.
