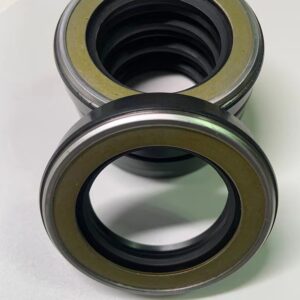

What is a High Pressure Oil Seal?

A high-pressure oil seal is a precision-engineered sealing component designed to prevent oil or hydraulic fluid leakage in machinery operating under extreme pressure conditions. Unlike conventional seals, these specialized devices are built to withstand pressures often exceeding 10 bar (145 psi) while maintaining a secure barrier against contaminants. Their advanced design and material composition make them indispensable in applications where standard seals would fail. Below is a comprehensive exploration of their purpose, construction, and critical role in modern machinery.

Core Functions of High-Pressure Oil Seals

High-pressure oil seals serve two primary functions in demanding environments:

1. Fluid Containment Under Pressure
   • They retain lubricants (e.g., engine oil, hydraulic fluid) within the system, ensuring optimal performance and longevity of components like engines, gearboxes, and hydraulic pumps.
   • By preventing leaks, they mitigate risks of lubrication failure, component wear, and operational downtime.
2. Contaminant Exclusion
   • These seals block external contaminants such as dirt, dust, and moisture from entering the system.
   • Dual functionality—retaining fluids while excluding pollutants—protects sensitive machinery from accelerated degradation.

Design Features Enabling High-Pressure Performance

To operate reliably under extreme pressures, high-pressure oil seals incorporate innovative engineering solutions:

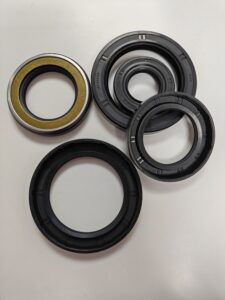

1. Reinforced Structural Components

• Metal Casings or Reinforcements:
  • Provide rigidity and prevent deformation under pressure.
  • Distribute sealing forces evenly across the shaft surface.
• Spring-Energized Sealing Lips:
  • A garter spring or helical energizer applies constant radial pressure to the sealing lip, compensating for thermal expansion, shaft wear, or pressure fluctuations.

2. Advanced Material Selection

• Fluoroelastomers (FKM/Viton):
  • Resist high temperatures (up to 220°C) and chemical exposure (fuels, oils).
• Hydrogenated Nitrile Rubber (HNBR):
  • Combines oil resistance with durability in high-stress environments.
• PTFE (Polytetrafluoroethylene):
  • Offers low friction, chemical inertness, and thermal stability, often used in spring-energized designs.
• Polyurethane/Polyacrylate:
  • Provides superior abrasion resistance for dynamic applications.

3. Optimized Lip Geometry

• Multi-Lip Configurations:
  • A primary sealing lip paired with secondary dust lips enhances redundancy.
• Hydrodynamic Features:
  • Spiral grooves or wavy patterns on the lip surface redirect escaping fluid back into the system using rotational motion.

4. Anti-Extrusion Mechanisms

• Reinforcing rings or harder elastomers prevent the seal from being forced into gaps between components under extreme pressure.

Performance Characteristics

High-pressure oil seals are defined by their ability to endure harsh conditions:

• Pressure Resistance:
  • Engineered to withstand pressures exceeding 10 bar, ensuring leak-free operation in hydraulic systems, power steering units, and industrial compressors.
• Temperature Tolerance:
  • Operate reliably across a broad range (–40°C to 220°C), making them suitable for Arctic environments or high-heat industrial settings.
• Longevity:
  • Advanced materials and robust designs minimize wear, reducing maintenance frequency and replacement costs.

Key Applications

High-pressure oil seals are critical in industries where reliability under stress is non-negotiable:

1. Automotive Systems
   • Power steering pumps, transmissions, and turbochargers in vehicles subject to high rotational speeds and thermal cycling.
2. Hydraulic Machinery
   • Hydraulic cylinders, pumps, and valves in construction equipment, aerospace systems, and manufacturing presses.
3. Heavy-Duty Industrial Equipment
   • Gearboxes, compressors, and turbines in mining, agriculture, and energy sectors.
4. Specialized Environments
   • Applications with rapid pressure spikes (e.g., hydraulic fracturing) or extreme temperature variations.

Installation and Maintenance Considerations

Proper installation ensures optimal seal performance:

• Surface Finish:
  • Shafts and housings require smooth finishes (typically 0.2–0.8 µm Ra) to prevent premature wear.
• Alignment:
  • Precise alignment avoids uneven lip contact and leakage.
• Temperature Compatibility:
  • Material selection must match the operational temperature range to prevent hardening or softening.

Failure Prevention and Advantages

By addressing common failure modes—extrusion, thermal degradation, and lip flipping—high-pressure oil seals deliver distinct benefits:

• Durability:
  • Withstand chemical exposure, mechanical stress, and abrasive conditions.
• Efficiency:
  • Minimize fluid loss, reducing environmental risks and operational costs.
• Versatility:
  • Compatible with static, rotating, or reciprocating shafts.

Conclusion

A high-pressure oil seal is far more than an upgraded conventional seal. It represents a synergy of precision engineering, advanced materials, and innovative design tailored to maintain integrity under extreme pressures. By ensuring fluid containment and contaminant exclusion, these seals safeguard machinery performance, safety, and longevity across automotive, industrial, and hydraulic applications. As industries continue to push operational boundaries, high-pressure oil seals remain a cornerstone of reliable, leak-free engineering solutions.
