How Do I Choose a Hydraulic Seal?

A Step-by-Step Guide to Optimal Selection

Choosing the right hydraulic seal is critical to ensuring system reliability, efficiency, and longevity. This process requires careful alignment of material properties, seal design, and application requirements. Below is a structured approach to guide your decision-making:

1. Analyze Your System’s Operating Environment

Begin by defining the conditions your seal will face.

1.1 Fluid Compatibility

Identify the hydraulic fluid type: Mineral oil, synthetic fluid, water-glycol, or bio-based fluid?

Check for chemical additives or contaminants: Seals must resist swelling, degradation, or chemical attack.

Example: Nitrile (NBR) works well with petroleum-based oils, while Viton® (FKM) handles aggressive chemicals.

1.2 Temperature Range

Determine the operating temperature:

Low temperatures: Silicone or specialized low-temp NBR.

High temperatures: Viton® (up to 200°C) or PTFE.

Account for thermal cycling: Materials must retain elasticity across extremes.

1.3 Pressure and Motion

System pressure:

High-pressure applications (>1500 psi) require reinforced materials (e.g., polyurethane) or backup rings to prevent extrusion.

Dynamic motion:

Reciprocating or rotational speeds demand low-friction materials (e.g., PTFE) and designs that minimize wear.

1.4 Environmental Factors

Contaminant exposure: Dust, dirt, or moisture may necessitate wiper seals or double-lipped designs.

UV/ozone resistance: Silicone or EPDM are ideal for outdoor applications.

2. Select the Seal Type and Design

Match the seal’s function to your system’s mechanical requirements.

2.1 Static vs. Dynamic Seals

Static seals: Used in non-moving joints (e.g., O-rings, gaskets). Ensure proper compression and groove design.

Dynamic seals:

Rod seals: Prevent fluid leakage from reciprocating rods.

Piston seals: Block fluid bypass in cylinders.

Wiper/scraper seals: Remove debris from rods to protect internal components.

2.2 Specialized Configurations

Single vs. double lip: Dual lips enhance contaminant exclusion in harsh environments.

Integrated backup rings: Improve extrusion resistance under high pressure.

Guide rings: PTFE or nylon rings reduce friction and maintain piston/rod alignment.

3. Choose the Right Material

Material selection is pivotal to performance.

3.1 Common Hydraulic Seal Materials

Nitrile (NBR):

Cost-effective for mineral oils and moderate temperatures (-30°C to 100°C).

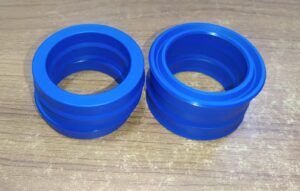

Polyurethane (AU/ EU):

High abrasion resistance; ideal for dynamic, high-speed applications.

Viton® (FKM):

Superior chemical and high-temp resistance (up to 200°C); avoid with phosphate esters.

PTFE:

Low friction, excellent chemical resistance; often paired with elastomer energizers.

Silicone:

Flexible at low temps but poor wear resistance; suitable for static seals.

3.2 Compatibility Checks

Use chemical compatibility charts to verify resistance to fluids, additives, and environmental factors.

4. Optimize Design and Tolerances

Proper engineering ensures longevity.

4.1 Seal Geometry

O-rings: Simple and versatile for static/low-pressure applications.

U-cups: Effective for dynamic sealing with minimal friction.

Composite seals: Combine materials (e.g., PTFE + elastomer) for multifunctional performance.

4.2 Groove Design

Ensure correct groove dimensions and surface finish (typically 8–16 µin Ra for rods).

Avoid over-compression (leads to extrusion) or under-compression (causes leakage).

4.3 Hardness (Durometer)

Softer seals (70–80 Shore A): Better conformity for uneven surfaces.

Harder seals (90–95 Shore A): Improved wear resistance in high-pressure systems.

5. Adhere to Standards and Sizing

Precision is key to compatibility.

5.1 Industry Standards

ISO 3601: Specifies O-ring dimensions and tolerances.

SAE J518: Governs flange connections and port seals.

DIN 3771: Standardizes metric O-ring sizes.

5.2 Dimensional Accuracy

Measure cylinder bore, rod diameter, stroke length, and groove dimensions meticulously.

Account for thermal expansion in high-temperature systems.

6. Installation and Maintenance Best Practices

Even the best seal will fail if improperly handled.

6.1 Installation Tips

Use installation tools (e.g., cone-shaped sleeves) to prevent lip damage.

Lubricate seals with compatible grease to ease fitting.

6.2 Maintenance Strategies

Regular inspections: Check for wear, cracks, or extrusion.

Contamination control: Use filters and breathers to extend seal life.

Replacement intervals: Follow manufacturer guidelines based on operating hours.

7. Consult Experts and Resources

Manufacturer guides: Parker, SKF, and Trelleborg provide detailed technical datasheets.

Industry resources:

Fluid Sealing Association guidelines.

Articles like “Guide to Hydraulic Seal Materials” or “Seal Failure Analysis.”

Summary Checklist

Operating conditions: Fluid type, temperature, pressure, contaminants.

Seal type: Static/dynamic, rod/piston/wiper.

Material: Compatibility with fluid and environment.

Design: Geometry, hardness, groove specifications.

Standards: ISO, SAE, or DIN compliance.

Installation: Proper tools and techniques.

By systematically addressing these factors, you can select a hydraulic seal that maximizes performance, minimizes downtime, and ensures cost-effective operation. When in doubt, collaborate with suppliers or engineers for application-specific solutions.
