What is a Seal on a Truck?

1. Definition and Purpose

A seal on a truck refers to any device or component designed to:

• Prevent leakage of fluids (e.g., oil, coolant, hydraulic fluid).
• Block contaminants (dust, dirt, moisture) from entering critical systems.
• Secure cargo by deterring unauthorized access (tamper-evident security seals).

Seals are indispensable for ensuring operational efficiency, safety, and compliance in trucking. They broadly fall into two categories:

1. Mechanical Seals: Protect internal systems (engines, transmissions, brakes).
2. Security Seals: Safeguard cargo during transit (ISO 17712-compliant devices).
3.
4.

2. Types of Seals and Their Functions

A. Mechanical Seals

These seals maintain the integrity of moving parts and fluid systems:

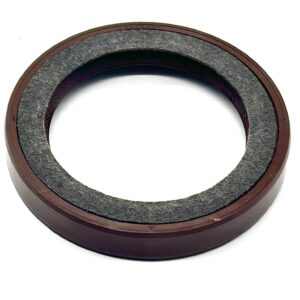

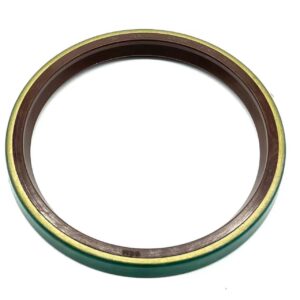

1. Oil Seals (Rotary Shaft Seals)
   • Function: Retain lubricants around rotating shafts (e.g., crankshafts, axle shafts).
   • Materials: Nitrile rubber (NBR), fluoroelastomer (FKM), silicone.
   • Common Applications:
     • Crankshaft Seals: Prevent engine oil leaks.
     • Axle Seals: Protect differential and wheel hub lubricants.
2. Gaskets
   • Function: Seal static joints (cylinder heads, oil pans).
   • Materials: Multi-layer steel (MLS), graphite composites.
3. Hydraulic Seals
   • Function: Maintain pressure in brake and steering systems.
   • Types: Piston seals, rod seals, wipers.
4. O-Rings
   • Function: Seal fuel injectors, coolant lines, and pneumatic systems.
   • Materials: Viton®, EPDM.

B. Security Seals

Designed to protect cargo integrity during transit:

1. Bolt Seals
   • Design: Hardened metal bolt with a tamper-proof lock.
   • Use: High-security container and trailer doors (ISO 17712 “High Security” certified).
2. Cable Seals
   • Design: Adjustable steel cable with a locking mechanism.
   • Use: Flexible for varying door configurations (ISO “Security” or “High Security”).
3. Pull-Tight Seals
   • Design: Plastic strip tightened like a zip-tie.
   • Use: Low-risk cargo or internal checkpoints.
4. Electronic Seals (E-Seals)
   • Design: RFID or GPS-enabled for real-time tamper alerts.
   • Use: High-value shipments requiring tracking and compliance reporting.

3. Regulatory Standards (ISO 17712)

ISO 17712:2013 classifies security seals into three categories:

1. Indicative (I): Basic tamper evidence.
2. Security (S): Moderate resistance to tampering.
3. High Security (H): Rigorously tested for tensile, bending, and impact resistance.

Compliance Requirements:

• Mandatory for cross-border shipments under programs like C-TPAT and WCO SAFE Framework.
• Seals must be serialized and recorded in shipping documents.

4. Critical Applications in Truck Systems

5. Common Failure Signs and Maintenance

Failure Indicators

• Fluid Leaks: Oil puddles, greasy components.
• Contaminated Fluids: Milky oil (water ingress) or gritty grease.
• Unusual Noises: Whining bearings or grinding transmissions.
• Tampered Security Seals: Broken locks or mismatched serial numbers.

Maintenance Best Practices

1. Regular Inspections: Check seals during routine maintenance.
2. Use OEM-Quality Seals: Avoid low-cost alternatives for critical systems.
3. Proper Installation:
   • Clean mating surfaces.
   • Lubricate lip seals before assembly.
4. Security Seal Protocols:
   • Store seals securely to prevent tampering.
   • Train staff on application and verification.

6. Truck-Specific Oil Seal Models and Sizes

Below are common oil seal dimensions for popular Chinese truck series:

1. JAC Series

• Transmission Seal: 68×95×12 mm (ID×OD×Thickness).
• Rear Axle Seal: 85×130×15 mm.

2. ISUZU  Series

• Crankshaft Seal: 105×130×13 mm.
• Rear Inner Wheel Hub Seal: 80×113×12/22 mm.

3. Dongfeng Series

• Differential Seal: 90×120×12 mm.
• Front Wheel Seal: 95×134×14.5 mm.

4. Foton Aoling/OMAN

Half-Shaft Seal: 84×161×17.8/20 mm.

• Cummins Crankshaft Seal: 120×140×13 mm.

5. FAW Jiefang

J6P Half-Shaft Seal: 74×156×17.5/22.2 mm.

• 485 Bridge Differential Seal: 85×150/169×13.5 mm.

6. Shaanxi Heavy Duty

Mining Truck Seal: 175×200×24 mm.

• Wheel Hub Seal: 145×175/205×15 mm.

7. Beiqi Foton

Rear Wheel Seal: 145×175×13 mm.

• Balance Shaft Seal: 170×190×8.5 mm.

7. Selection Guidelines

• Material Compatibility:
  • FKM for high-temperature engines.
  • HNBR for abrasive environments.
• Size Precision: Measure shaft/housing dimensions to avoid leaks.
• Supplier Recommendations:
  • JAC/Foton: Jinan Yurui Auto Parts (OEM-compliant).
  • Mining Trucks: Renxian Qida Rubber (high-pressure seals).

Conclusion

A “seal” on a truck encompasses both mechanical components that protect internal systems and security devices that safeguard cargo. Understanding their roles—from preventing oil leaks with high-temperature FKM seals to ensuring cargo integrity via ISO 17712-certified bolt seals—is vital for fleet operators. By adhering to maintenance protocols and selecting seals tailored to specific truck models, operators can enhance reliability, compliance, and operational efficiency.
