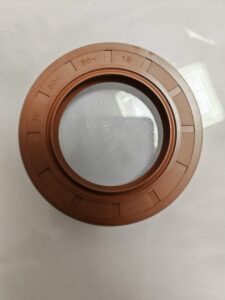

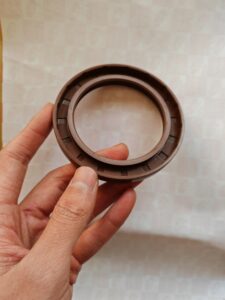

What is an FKM Oil Seal?

An FKM oil seal (Fluorocarbon Elastomer oil seal) is a high-performance rotary shaft seal designed to prevent fluid leakage in demanding mechanical systems. Its sealing lip is crafted from fluoroelastomer—a synthetic rubber renowned for superior heat resistance, chemical stability, and durability compared to conventional elastomers like nitrile (NBR) or silicone. Widely recognized under the trade name Viton®, FKM seals are critical in automotive, aerospace, and industrial applications where extreme temperatures, aggressive chemicals, or high-pressure conditions render standard seals ineffective.

Composition and Material Designation

Fluoroelastomer Family (FKM/FPM/Viton®)

• Definition & Nomenclature:
  • FKM is the ASTM D1418 designation for fluoroelastomers, where “F” denotes fluorine, “K” originates from the German Kohlenstoff (carbon), and “M” signifies a saturated polymer backbone.
  • FPM is the equivalent ISO 1629 designation used in international standards.
  • Viton® is a registered trademark for FKM materials developed by Chemours Company, often used synonymously with fluoroelastomers.

Key Properties of FKM Oil Seals

1. Temperature Resistance

• Continuous Operating Range:
  • Standard Grades: -26°C to +205°C (-15°F to +400°F).
  • High-Performance Grades: Up to +230°C (+446°F) for short-term exposure (e.g., turbocharger applications).
  • Low-Temperature Flexibility: Specialized formulations extend usability below -40°C, though standard grades may stiffen under -20°C.
• Thermal Aging Resistance:
  • Retains >70% tensile strength after 1,000 hours at 200°C.
  • Lifespan of ~5,000 hours at 200°C in static applications.

2. Chemical Compatibility

• Resistance to:
  • Hydrocarbons: Mineral oils, fuels (gasoline, diesel), synthetic lubricants, and hydraulic fluids.
  • Acids & Solvents: Moderate resistance to acids (e.g., sulfuric, nitric) and polar solvents.
  • Ozone/Weathering: Immune to ozone degradation, even at elevated temperatures.
• Incompatible With:
  • Polar Chemicals: Ketones (e.g., acetone), amines, and low-molecular-weight esters.
  • Ammonia and Steam: Poor performance in ammonia-rich or steam environments.

3. Mechanical Performance

• Hardness (Durometer): 55–95 Shore A (commonly ~75 Shore A for balanced elasticity and wear resistance).
• Tensile Strength: ~12.3 MPa (ASTM D412).
• Compression Set: ~11% at 175°C after 22 hours (exceeds NBR and silicone).
• Abrasion Resistance: Suitable for dynamic applications with shaft speeds up to 25 m/s.

Structure and Design

A typical FKM oil seal comprises:

1. Metal Case: Stainless steel or carbon steel housing for structural rigidity.
2. FKM Sealing Lip: Precision-molded fluoroelastomer component that maintains contact with the rotating shaft.
3. Garter Spring: Ensures consistent radial pressure on the sealing lip, compensating for wear or thermal expansion.

Applications Across Industries

1. Automotive

• Turbochargers: Seals exhaust-side bearings exposed to temperatures >200°C.
• Engines/Transmissions: Crankshaft, camshaft, and transmission seals in ICE and hybrid vehicles.
• Fuel Systems: Resists ethanol-blended fuels and biodiesel.

2. Aerospace

• Hydraulic/Pneumatic Systems: Seals in landing gear, actuators, and jet engine components.
• Fuel Management: Compatible with JP-8 and synthetic jet fuels.

3. Industrial Machinery

• Pumps/Compressors: High-pressure hydraulic seals for chemical processing.
• Energy Sector: Oil-and-gas drilling equipment, geothermal valves.

4. Specialty Applications

• Pharmaceutical/Food Processing: FDA-compliant grades for steam sterilization (e.g., autoclaves).
• Semiconductor Manufacturing: Resists aggressive plasma-cleaning agents.

Advantages Over Other Elastomers

Limitations and Considerations

• Cost: 2–3x more expensive than NBR seals.
• Low-Temperature Use: Requires specialized grades (e.g., FKM-GBL-S) below -20°C.
• Chemical Exceptions: Avoid in ammonia, glycol-based brake fluids, or ester-rich environments.

Standards and Selection Guidelines

• Material Standards:
  • ASTM D1418 (FKM), ISO 1629 (FPM).
  • ISO 3601-1 for O-ring dimensions.
• Selection Criteria:
  • Temperature extremes, chemical exposure, dynamic speed, and pressure.
  • Cross-reference compatibility charts (e.g., Utex Industries, Parker O-Ring Handbook).

Conclusion

FKM oil seals are indispensable in applications where conventional elastomers fail—particularly in high-temperature, chemically aggressive environments. By leveraging their unique blend of thermal stability, chemical resistance, and mechanical robustness, engineers ensure reliable sealing performance in critical systems ranging from automotive engines to aerospace hydraulics. While costlier than alternatives, their extended service life and reduced downtime justify their use in mission-critical scenarios.
