What is HTC Oil Seal?

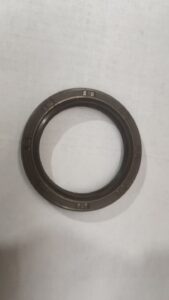

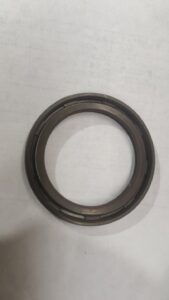

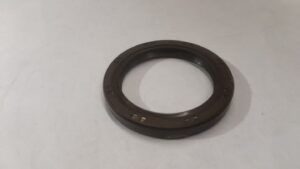

1. Introduction to HTC Oil Seals

HTC oil seals are specialized rotary shaft seals engineered for high-temperature and high-speed applications. The term “HTC” stands for High-Temperature Oil Seal, reflecting its core capability to withstand extreme thermal conditions (typically ranging from –30°C to +100°C, with specialized materials allowing short-term peaks up to +150°C). These seals are critical components in automotive, industrial, and agricultural machinery, where reliable fluid containment and contamination prevention are paramount.

Unlike standard lip seals, HTC variants integrate advanced materials and structural designs to address challenges such as thermal cycling, bidirectional rotation, and dynamic pressure fluctuations. Their robustness makes them indispensable in modern engineering systems, particularly in electric vehicle (EV) drivetrains, combustion engines, and heavy-duty industrial equipment.

2. Core Features & Design Principles

HTC oil seals are characterized by the following key attributes:

A. High-Temperature Resilience

• Material Selection: Utilizes heat-resistant elastomers such as Fluoroelastomer (FKM/Viton®), Hydrogenated Nitrile (HNBR), and Polyacrylate (ACM). These materials retain elasticity and sealing integrity even under prolonged exposure to elevated temperatures.
• Thermal Cycling Resistance: Engineered to endure repeated expansion/contraction cycles without cracking or hardening.

B. Advanced Sealing Mechanisms

• Helix Line Design: A spiral groove on the lip heel channels leaked fluid back into the system, enhancing sealing efficiency.
• Spring-Energized Lip: A garter spring ensures consistent radial pressure against the shaft, compensating for wear and vibration.
• Directional Variants:
  • HTC: Standard single-lip design for unidirectional rotation.
  • HTCL/HTCR: Optimized for counterclockwise (“L”) or clockwise (“R”) rotation.
  • HTGW: Bidirectional sealing capability for applications requiring shaft reversals.

C. Structural Components

• Metal Case: Provides mechanical strength and ensures a secure press-fit into the housing. Often coated with zinc or phosphate for corrosion resistance.
• Elastomeric Lip: Bonded to the metal case, offering flexibility and wear resistance.

3. Materials & Manufacturing

HTC seals are fabricated using a range of advanced polymers tailored to specific operational demands:

4. Technical Specifications

HTC oil seals are rated for the following operational limits:

• Temperature Range: –30°C to +100°C (short-term peaks up to +150°C).
• Pressure Tolerance:
  • Standard seals: ≤ 0.03 MPa (0.3 kgf/cm²).
  • Hydraulic variants: Up to 30 MPa.
• Surface Speed: ≤ 1.0 m/s (to prevent lip degradation).
• Media Compatibility: Mineral oils, synthetic lubricants, greases, and limited water exposure.

5. HTCL vs. HTCR: Model-Specific Applications

The HTCL and HTCR designations denote directional optimization and functional enhancements:

A. HTCL Series

• Primary Use: Counterclockwise shaft rotation.
• Applications:
  • Crankshaft Seals: Example: Toyota engines requiring NBR/FKM materials to balance oil resistance and thermal stability.
  • Dust-Prone Environments: Integrated secondary dust lips (similar to TB seals) for agricultural machinery.

B. HTCR Series

• Primary Use: Clockwise shaft rotation with enhanced fluid dynamics.
• Applications:
  • EV Drivetrains: Handles bidirectional rotation in electric motors via multi-zone helix lines.
  • Low-Friction Design: Springless variants reduce shaft wear and heat generation.

6. Industry Applications

HTC oil seals are deployed across diverse sectors:

A. Automotive

• Engine Systems: Crankshaft front/rear seals (e.g., Mitsubishi MD343563).
• Transmissions: Output shaft seals for manual/automatic gearboxes.
• Electric Vehicles: High-speed motor seals (up to 35 m/s) with bidirectional compatibility.

B. Industrial Machinery

• Pumps & Compressors: Sealing hydraulic fluids under high pressure.
• Gearboxes: Preventing lubricant leakage in wind turbines and conveyor systems.

C. Agricultural Equipment

• Tractors & Harvesters: Dust exclusion and thermal stability in harsh outdoor environments.

7. Comparison with Other Oil Seal Types

8. Selection Guidelines

• Temperature: Prioritize FKM/HNBR for >100°C environments.
• Rotation Direction: Use HTCL/HTCR for unidirectional systems; HTGW for bidirectional.
• OEM Compliance: Corteco HTC seals meet original equipment specifications for European vehicles.

9. Installation Best Practices

1. Shaft Preparation: Ensure surface finish ≤ Ra 0.8 µm to prevent lip wear.
2. Lubrication: Coat the lip with compatible grease before installation.
3. Press-Fit Tools: Use guided drivers to avoid case deformation.

10. Leading Manufacturers & Sourcing

• Feiyun oil Seal (China): HT series design expertise.
• Corteco (Germany): OEM-grade ACM seals for European automotive.
• E.S Seal Sdn Bhd (Malaysia): Customizable HTC dimensions and materials.

Conclusion

HTC oil seals represent a critical advancement in sealing technology, addressing the dual challenges of extreme temperatures and mechanical stress. By leveraging advanced materials like FKM and innovative designs such as helix lines and bidirectional lips, these seals ensure reliable performance in automotive, industrial, and agricultural applications. Engineers must prioritize model-specific attributes (e.g., HTCL vs. HTCR) and adhere to installation protocols to maximize service life.
