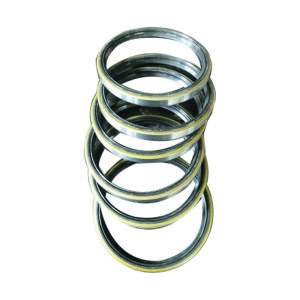

What is a TB Seal?

A TB seal is a type of radial shaft seal widely used in rotating equipment to retain lubricants and exclude contaminants. Characterized by its metal-cased construction and elastomeric sealing lips, this seal ensures reliable performance across diverse industrial applications. Below is a comprehensive overview of its design, materials, advantages, and key differences from similar sealing solutions.

Definition and Core Characteristics

TB seals (often referred to as Style TB) are rotary shaft seals featuring a metal outer casing bonded to an elastomeric inner layer. This layer directly contacts the shaft, creating a barrier against contaminants while retaining lubrication. Key design elements include:

• Metal Case: Precision-ground steel or stainless steel housing provides radial rigidity and stability, particularly critical for large-diameter shafts.
• Elastomeric Coating: A rubber layer (NBR, FKM, ACM, etc.) bonded to the metal case ensures uniform contact with the shaft.
• Sealing Lips:
  • Primary Lip: Spring-energized to maintain radial pressure, ensuring consistent lubricant retention.
  • Secondary Lip: Acts as a dust guard, shielding the primary lip from external contaminants.
• Spring: A garter spring (carbon or stainless steel) reinforces sealing pressure, compensating for wear over time.

Design and Construction

The TB seal’s robust design balances simplicity and effectiveness:

1. Metal Case:
   • Constructed from AISI 1010 steel or corrosion-resistant stainless steel (AISI 304/316).
   • Ensures dimensional stability and resistance to mechanical stress.
2. Elastomeric Materials:
   • NBR (Nitrile Rubber): Standard for general-purpose use (−30°C to +100°C).
   • FKM (Fluorocarbon Rubber): Resists high temperatures (+170°C) and chemicals.
   • ACM (Polyacrylate): Ideal for high-heat environments like automatic transmissions.
   • EPDM/HNBR: Specialized for weather resistance or high-pressure settings.
3. Spring Mechanism:
   • AISI 1070–1090 steel or stainless steel (AISI 316) springs ensure durability in harsh conditions.

Performance and Applications

TB seals excel in low-pressure environments (up to ~7 psi) and moderate surface speeds (2,000 ft/min). Their versatility makes them ideal for:

• Industrial Machinery: Gearboxes, pumps, electric motors, and transmissions.
• Key Benefits:
  • Radial Rigidity: Maintains seal integrity even in large-diameter shafts.
  • Contaminant Exclusion: Dual-lip design effectively blocks dust and particles.
  • Material Flexibility: Compatible with oils, greases, and varying temperatures.

Comparison with TC Seals

While TB and TC seals share similarities, critical differences include:

1. Lip Configuration:
   • TB: Single primary lip + separate dust lip.
   • TC: Dual-lip design (primary and secondary molded as one unit).
2. Contaminant Protection:
   • TC’s integrated dust lip offers marginally better anti-pollution performance.
   • TB’s secondary lip remains highly effective for most industrial uses.
3. Dimensions:
   • TC seals are slightly bulkier due to their integrated dual-lip geometry.

Standards and Selection Guidelines

• ISO/DIN Compliance: TB seals follow metric sizing (e.g., TB 32×52×8).
• Material Coding: Suffixes denote elastomer type (e.g., TB-NBR for nitrile).
• Cross-Referencing: Equivalent to Freudenberg B1SL or CRWH1 codes.

Selection Steps:

1. Shaft and Housing Dimensions: Match ISO/DIN specifications.
2. Elastomer Choice: Prioritize temperature, chemical exposure, and abrasion resistance.
3. Dynamic Conditions: Verify speed, pressure, and environmental factors (e.g., corrosion).

Key Takeaways

A TB seal is a versatile radial shaft seal combining simplicity with robust performance. Its metal-elastomer hybrid design ensures reliable lubricant retention and contaminant exclusion in applications ranging from industrial gearboxes to automotive transmissions. While often compared to TC seals, TB’s distinct dual-lip configuration and material adaptability make it a preferred choice for moderate-pressure, high-contamination environments.

By understanding its design principles and application scope, engineers can optimize TB seal selection for durability and efficiency in rotating machinery.
