What Does Lip Oil Seal Mean?

A lip oil seal (also called a lip seal, radial shaft seal, or rotary shaft seal) is a mechanical component critical for retaining lubricants and excluding contaminants in machinery. This ring-shaped seal is installed around rotating or reciprocating shafts to prevent oil or grease leakage while blocking external particles like dirt, dust, and moisture. Below is a comprehensive explanation of its definition, structure, function, types, and applications.

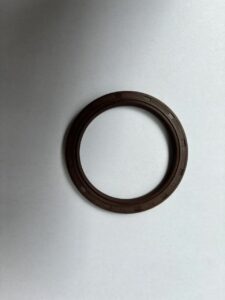

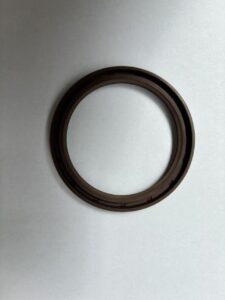

Definition

A lip oil seal refers specifically to the flexible, elastomeric “lip” that forms the primary sealing element in an oil seal. This lip maintains direct contact with the shaft surface, creating a dynamic barrier that traps lubricants within machinery and prevents environmental contaminants from entering. The term is often used interchangeably with radial shaft seal or rotary shaft seal in technical contexts, emphasizing its role in sealing rotating components
Wikipedia, Hongju.

Structure and Components

Lip oil seals are composed of three core elements:

1. Metal Outer Casing

• Provides structural rigidity and ensures secure installation into the housing bore.
• Typically made of carbon steel or stainless steel for corrosion resistance.
  SKF.

2. Elastomeric Sealing Lip

• The primary sealing element, molded from materials like nitrile rubber (NBR), fluorocarbon (FKM), silicone, or polyurethane.
• Selected based on temperature range, chemical compatibility, and wear resistance.
  Global O-Ring and Seal.

3. Garter Spring (Optional)

• A helical spring encircling the lip to maintain consistent radial pressure against the shaft.
• Enhances sealing efficiency under variable speeds or pressures.
  SKF.

Function and Operating Principle

Lip oil seals perform two critical roles:

1. Lubricant Retention

• Prevents oil or grease from escaping machinery (e.g., gearboxes, engines, hydraulic systems).
• The lip’s controlled friction against the shaft ensures minimal leakage even during rotation.
  machinerylubrication.com.

2. Contaminant Exclusion

• Blocks external particles (dust, moisture, debris) from entering the system, reducing wear and corrosion risks.
  processindustryforum.com.

3. Dynamic Performance

• Operates across temperatures from -40°C to 250°C (-40°F to 500°F) and handles shaft speeds up to 20 m/s (4,000 RPM), depending on material and design.
  machinerylubrication.com.

Types of Lip Oil Seals

1. Single-Lip vs. Double-Lip

• Single-Lip Seals:
  • Feature one sealing edge for basic lubricant retention.
  • Ideal for moderate environments with low contamination risks.
    Monroe Engineering.
• Double-Lip Seals:
  • Include a secondary “dust lip” for enhanced contaminant exclusion.
  • Suited for harsh, dusty, or wet conditions (e.g., agricultural or construction equipment).
    Monroe Engineering.

2. Springless vs. Spring-Loaded

• Springless Seals:
  • Rely on the lip’s natural elasticity for sealing.
  • Used in low-pressure or grease-only applications.
    Global O-Ring and Seal.
• Spring-Loaded Seals:
  • Incorporate a garter spring to boost radial force, ensuring reliable sealing under high pressure or dynamic conditions.
    Global O-Ring and Seal.

Common Applications

Lip oil seals are indispensable in industries requiring reliable shaft sealing:

• Automotive:
  • Engine crankshafts, transmissions, wheel bearings, power steering systems.
    Wikipedia, The O-Ring Store.
• Industrial Machinery:
  • Pumps, compressors, gearboxes, mixers, and turbines.
    Koyo Bearings.
• Hydraulics & Pneumatics:
  • Cylinder rod seals in hydraulic/pneumatic actuators.
    McMaster-Carr.
• Household Appliances:
  • Washing machines, power tools, and HVAC systems.

Materials

• Elastomers:
  • Nitrile Rubber (NBR): Cost-effective for general use.
  • FKM (Viton®): High heat and chemical resistance.
  • PTFE: Low friction and extreme temperature tolerance.
    Global O-Ring and Seal.
• Metal Casing:
  • Stainless steel for corrosive environments; carbon steel for standard applications.

Importance

Lip oil seals extend equipment lifespan by:

• Reducing friction and wear through effective lubrication retention.
• Preventing contamination-induced failures.
• Minimizing maintenance costs and downtime.

Conclusion

A lip oil seal is a fundamental mechanical component in rotating machinery, balancing simplicity, cost-effectiveness, and performance. Its design—combining a flexible elastomeric lip, metal casing, and optional spring—ensures reliable sealing across automotive, industrial, and household applications. Understanding its structure, types, and material selection is key to optimizing machinery efficiency and longevity.
