What is the Purpose of an O-Ring?

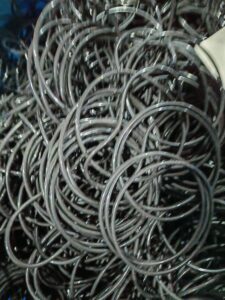

An O-ring is a toroidal (doughnut-shaped) sealing device engineered to prevent the leakage of fluids or gases between two connected components. Its fundamental purpose is to create a reliable, pressure-responsive seal in mechanical systems, ensuring containment of liquids or gases while excluding contaminants. This article explores how O-rings achieve this purpose, their applications across industries, material considerations, and best practices for maximizing their effectiveness.

1. Core Function: How an O-Ring Works

Sealing Mechanism

• Compression-Based Design:
  • When placed in a groove between two mating surfaces, the O-ring is compressed, deforming to fill microscopic gaps.
  • This deformation generates contact pressure, blocking fluid or gas passage.
• Pressure Activation:
  • Under system pressure, the O-ring is forced tightly against the groove walls, enhancing sealing effectiveness. This “self-energizing” feature allows it to adapt to varying pressures.

Static vs. Dynamic Seals

• Static Seals: Used where no relative motion occurs (e.g., pipe flanges, engine valve covers).
• Dynamic Seals: Employed in moving parts (e.g., hydraulic pistons, rotating shafts).

2. Key Applications Across Industries

O-rings serve critical roles in diverse systems by fulfilling their sealing purpose:

1. Automotive:
   • Engine Seals: Valve covers, crankshafts, and fuel injectors (prevent oil or fuel leaks).
   • Brake Systems: Hydraulic lines (retain brake fluid under high pressure).
   • Air Conditioning: Refrigerant line seals.
2. Aerospace:
   • Rocket Engines: Seal liquid oxygen and fuel in extreme temperatures and vacuums.
   • Hydraulic Systems: Ensure leak-free operation in landing gear and flight controls.
3. Industrial Machinery:
   • Pumps and Compressors: Prevent fluid leakage in hydraulic or pneumatic systems.
   • Chemical Reactors: Seal corrosive or high-temperature media.
4. Plumbing:
   • Pipe Joints and Faucets: Block water or gas leaks in residential and commercial systems.
5. Medical Devices:
   • Sterile Fluid Handling: Seal IV pumps or diagnostic equipment to maintain hygiene.

3. Material Selection: Tailoring to the Purpose

The choice of material ensures O-rings perform reliably under specific conditions:

Common Elastomers

• Nitrile Rubber (NBR):
  • Purpose: Oil and fuel resistance.
  • Limits: -30°C to +100°C.
  • Applications: Automotive oil systems, fuel lines.
• Fluorocarbon (FKM/Viton®):
  • Purpose: High-temperature and chemical resistance.
  • Limits: -20°C to +250°C.
  • Applications: Turbocharger seals, chemical processing.
• Silicone (VMQ):
  • Purpose: Extreme thermal flexibility.
  • Limits: -50°C to +230°C.
  • Applications: Coolant systems, medical devices.
• EPDM Rubber:
  • Purpose: Water and steam resistance.
  • Applications: Radiator hoses, brake boosters.

Specialized Materials

• HNBR: Enhanced heat resistance for hybrid/electric vehicles.
• PTFE: For ultra-high chemical resistance in semiconductor manufacturing.

4. Design Advantages Supporting the Purpose

• Simplicity: Easy to manufacture, install, and replace.
• Cost-Effectiveness: Low production cost compared to complex seals.
• Versatility: Suitable for static or dynamic applications across pressures (vacuum to 5,000+ psi).
• Reliability: Accommodates surface imperfections and retains shape after decompression.

5. Common Failure Modes and Mitigation

Why O-Rings Fail

1. Thermal Degradation:
   • Cracking or hardening due to excessive heat/cold (e.g., space shuttle Challenger O-ring failure).
2. Chemical Attack:
   • Swelling or dissolution from incompatible fluids (e.g., biofuels degrading NBR).
3. Mechanical Damage:
   • Nicks or cuts during installation.
4. Compression Set:
   • Permanent deformation after prolonged pressure.

Preventive Measures

• Material Compatibility: Match O-ring chemistry to system fluids.
• Proper Installation: Use lubrication and avoid over-stretching.
• Regular Replacement: Inspect and replace during maintenance cycles.

6. Standards and Best Practices

To ensure O-rings fulfill their purpose consistently:

• ISO 3601: Defines dimensional tolerances and testing protocols.
• ASTM D2000: Classifies elastomers by temperature/chemical resistance.
• OEM Guidelines: Follow manufacturer specifications for critical systems (e.g., aerospace).

7. The Broader Impact of O-Rings

• Safety: Prevent hazardous leaks (e.g., toxic chemicals, flammable fuels).
• Efficiency: Maintain system pressure in hydraulic brakes or industrial compressors.
• Sustainability: Reduce waste by minimizing fluid loss and machinery downtime.

Conclusion

The purpose of an O-ring is to provide a simple, cost-effective, and adaptable sealing solution that prevents leakage in mechanical systems. By leveraging materials tailored to specific environments and adhering to design standards, O-rings ensure reliability in applications ranging from household plumbing to aerospace engineering. Their ability to self-energize under pressure and accommodate dynamic conditions underscores their indispensability in modern technology. When properly selected and maintained, O-rings silently uphold the integrity of countless systems, proving that even the smallest components can have an outsized impact.
