What is the Difference Between Oil Seal and Mechanical Seal?

Oil seals and mechanical seals are essential components in preventing fluid leakage in rotating machinery, but they differ fundamentally in design, performance, and application. This article provides a structured comparison to highlight their key distinctions, ensuring clarity while retaining original content.

1. Core Definitions and Design Principles

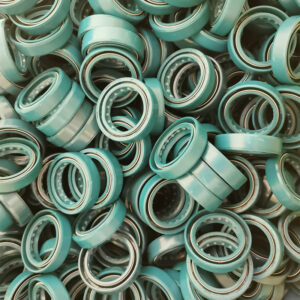

Oil Seal

• Definition: A simple, cost-effective sealing device designed to retain lubricants (oil or grease) and block contaminants (dust, dirt) around rotating shafts.
• Structure:
  • Elastomeric lip (e.g., nitrile rubber, fluorocarbon) with a metal casing.
  • Often includes a garter spring to maintain radial pressure on the shaft.
• Operating Principle: The flexible lip rides directly on the shaft surface, forming a line contact barrier.

Mechanical Seal

• Definition: A precision-engineered sealing system designed to prevent leakage of pressurized fluids (liquids or gases) in demanding environments.
• Structure:
  • Two primary components: a rotating face attached to the shaft and a stationary face mounted in the housing.
  • Secondary seals (O-rings or gaskets) and springs or bellows to maintain face contact.
• Operating Principle: The rotating and stationary faces create a tight, face-to-face barrier, minimizing fluid leakage.

2. Key Differences in Design and Performance

3. Application Scenarios

Oil Seal Use Cases

• Automotive: Engine crankshafts, wheel bearings, transmission systems.
• Industrial Machinery: Conveyor rollers, gear reducers, hydraulic cylinders.
• Consumer Appliances: Washing machine drums, power tool motors.

Mechanical Seal Use Cases

• Chemical Processing: Sealing corrosive acids in centrifugal pumps.
• Oil & Gas: Preventing methane leaks in pipeline compressors.
• Pharmaceuticals: Sterile fluid handling in bioreactors.
• Marine: Shaft seals in ship propulsion systems.

4. Advantages and Limitations

Oil Seal

• Pros:
  • Low cost and easy installation.
  • Minimal maintenance requirements.
  • Compact design for space-constrained applications.
• Cons:
  • Limited pressure and temperature tolerance.
  • Higher friction and wear in high-speed systems.
  • Shorter lifespan in harsh chemical environments.

Mechanical Seal

• Pros:
  • Superior leakage control for hazardous or expensive fluids.
  • Long service life under extreme conditions.
  • Customizable for specific fluid compatibility.
• Cons:
  • High upfront and maintenance costs.
  • Requires precise alignment and clean operating conditions.
  • Sensitive to dry running or misalignment.

5. Cost and Maintenance Comparison

6. Real-World Examples

• Oil Seal Failure: A leaking axle seal in a car causes oil drips but is quickly replaced for under $20.
• Mechanical Seal Failure: A failed seal in a chemical pump handling chlorine gas risks toxic leaks, requiring immediate shutdown and costly repairs.

7. Selection Guidelines

• Choose Oil Seals If:
  • Operating conditions involve moderate pressure, temperature, and speed.
  • Cost-effectiveness and simplicity are priorities.
  • Minor leakage is tolerable.
• Choose Mechanical Seals If:
  • Handling hazardous, toxic, or high-value fluids.
  • Operating under extreme pressure, temperature, or speed.
  • Leakage must be near-zero.

Conclusion

Oil seals and mechanical seals serve distinct roles in fluid containment. Oil seals are ideal for low-to-moderate stress applications, offering simplicity and affordability. Mechanical seals, however, excel in high-pressure, high-temperature, or corrosive environments where leakage control is critical. Understanding their differences ensures optimal performance, safety, and cost-efficiency across industries.
