What is the Difference Between Oil Seal and O-Ring?

A Comprehensive Comparison of Design, Functionality, and Applications

Overview

O-rings and oil seals are both critical sealing solutions but serve distinct purposes. An O-ring is a simple elastomeric loop designed primarily for static or low-speed dynamic sealing, while an oil seal (also called a radial shaft seal or lip seal) is a complex, multi-component device engineered for high-speed rotary applications. Their differences span design, materials, performance, and use cases, as outlined below.

1. Definitions

• O-Ring:
  A toroidal (doughnut-shaped) elastomer with a circular cross-section, compressed between mating surfaces to block fluid or gas leakage. It functions in static joints (e.g., pipe flanges) or low-speed reciprocating/rotating systems Wikipedia.

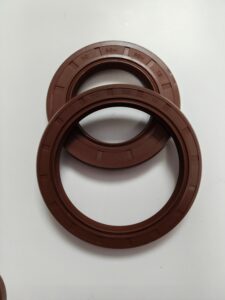

• Oil Seal:
  A composite sealing device installed around rotating shafts to retain lubricants (oil/grease) and exclude contaminants like dust and dirt. It typically includes a metal casing, elastomeric sealing lips, and a garter spring to maintain contact with the shaft Wikipedia.

2. Design and Construction

•
  O-Ring: Relies on groove compression; fluid pressure improves sealing by forcing the ring against groove walls.
• Oil Seal: The primary lip maintains a thin lubricant film on the shaft, while secondary lips block contaminants.

3. Primary Functions

• O-Ring:
  • Seals static joints (e.g., pipelines, valves).
  • Handles low-speed reciprocating/rotating motion (e.g., hydraulic pistons).
  • Prevents fluid/gas leakage under compression.
• Oil Seal:
  • Designed for high-speed rotary shafts (e.g., engines, gearboxes).
  • Retains lubricants and excludes contaminants (dust, moisture).
  • Operates dynamically with minimal wear due to lubricant film.

4. Applications

5. Performance Factors

Pressure and Speed

• O-Ring:
  • Handles up to ~5,000 psi in static applications.
  • High pressure in dynamic settings risks extrusion.
• Oil Seal:
  • Optimized for surface speeds (rotary motion), not extreme pressure.
  • Moderate pressure retention focused on lubricant stability.

Temperature and Material Compatibility

• O-Ring:
  • Broad elastomer options (EPDM, FKM, silicone) for -50°C to +200°C.
  • Selected for chemical resistance (e.g., acids, fuels).
• Oil Seal:
  • Limited to oil-resistant elastomers (NBR, FKM) for -40°C to +150°C.
  • Steel casing ensures structural integrity in harsh environments.

Contaminant Exclusion

• O-Ring:
  • No built-in contaminant protection; relies on tight mating surfaces.
• Oil Seal:
  • Secondary lips and spring preload block dust, dirt, and moisture.

6. Selection Criteria

7. Summary

• Choose an O-Ring if:
  • Sealing static joints or low-motion systems.
  • Prioritizing cost-effectiveness and chemical compatibility.
• Choose an Oil Seal if:
  • Sealing rotating shafts (e.g., engines, pumps).
  • Requiring lubricant retention and contaminant exclusion.
